com.strumenta.javalangmodule.ast
Version: 1.0
This document was generated on 2026/02/17.
Introduction
This is the documentation for the com.strumenta.javalangmodule.ast language.Documentation
Abstract Node
Expression Abstract
Any expression in the Java language. Much of the work in a program is done by evaluating expressions, either for their side effects, such as assignments to variables, or for their values, which can be used as arguments or operands in larger expressions, or to affect the execution sequence in statements, or both. See https://docs.oracle.com/javase/specs/jls/se19/html/jls-15.html
Annotation Abstract
Modifier Abstract
EntityMember Abstract
ValueDeclaration Abstract
Type Abstract
TypeArguments Abstract
TypeBound Abstract
Statement Abstract
There are many kinds of statements in the Java programming language. Most correspond to statements in the C and C++ languages, but some are unique.
Local Features
| Name | Type and Description |
|---|---|
| label | optional |
BinaryExpr Abstract
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| left |
Expression
N
|
| right |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
AbstractAssignmentExpr Abstract
AdditiveExpr Abstract
BitwiseExpr Abstract
EqualityExpr Abstract
LogicalExpr Abstract
MultiplicativeExpr Abstract
RelationalExpr Abstract
ShiftExpr Abstract
InstanceOfExpr Abstract
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| expression |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
LambdaParameter Abstract
PrimaryExpr Abstract
Primary expressions include most of the simplest kinds of expressions, from which all others are constructed: literals, object creations, field accesses, method invocations, method references, and array accesses. A parenthesized expression is also treated syntactically as a primary expression.
Super Classes
Inherited Features
| Name | Type and Description |
|---|
ArrayCreationExpr Abstract
An array creation expression is used to create new arrays.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| dimensions |
ArrayDimensions
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
LexicalLiteralExpr Abstract
A literal denotes a fixed, unchanging value.
Super Classes
Inherited Features
| Name | Type and Description |
|---|
BooleanLiteralExpr Abstract
MethodInvocationExpr Abstract
A method invocation expression is used to invoke a class or instance method.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| method |
MethodDeclarationLike
R
|
| arguments |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
SwitchExprAlternative Abstract
UnaryOperatorExpression Abstract
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| base |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
PostfixExpression Abstract
PrefixExpression Abstract
FieldAccessContainer Abstract
ImportDeclaration Abstract
See https://docs.oracle.com/javase/specs/jls/se20/html/jls-7.html#jls-7.5
Local Features
| Name | Type and Description |
|---|---|
| static | LionWeb.LionCore_builtins.Boolean |
ModuleDirective Abstract
SwitchStmtLabel Abstract

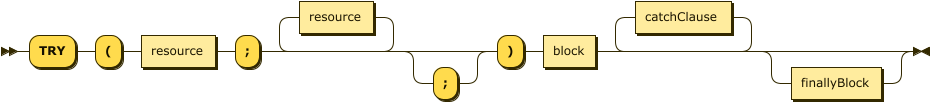

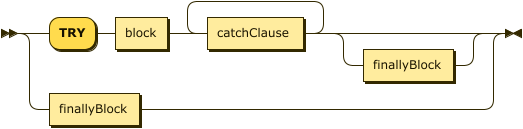

TryStmt Abstract
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
BlockStmt
N
|
| catchClauses |
list of
CatchClause
N
|
| finallyBlock |
FinallyBlock
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
Nodes
AnnotationExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| annotation |
Annotation
N
|
Inherited Features
| Name | Type and Description |
|---|
Abstract Node
Default Node
Final Node
Native Node
Private Node
Protected Node
Public Node
Sealed Node
Static Node
Synchronized Node
Transient Node
Transitive Node
Volatile Node
MarkerAnnotation Node
AnnotationDeclaration Node

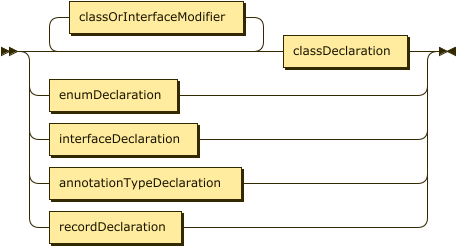

TypeDeclaration Node
AnnotationConstant Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| declarators |
list of
VariableDeclarator
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
VariableDeclarator Node
Local Features
| Name | Type and Description |
|---|---|
| arrayDimensions |
list of
ArrayDimension
N
|
| initializer |
Expression
N
|
ArrayDimension Node
ArrayType Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| baseType |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
BooleanType Node
ByteType Node
CharType Node
DoubleType Node
EntityType Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| entity |
TypeLikeDeclaration
R
|
| typeArguments |
TypeArguments
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
ExplicitTypeArguments Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| typeArguments |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
InferredTypeArguments Node
FloatType Node
IntType Node
InternalType Node
Super Classes
Local Features
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
IntersectionType Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| elements |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
LongType Node
ShortType Node
UnionType Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| elements |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
VoidType Node
WildcardType Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| bound |
TypeBound
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| jAnnotations |
list of
Annotation
N
|
LowerTypeBound Node
UpperTypeBound Node
AnnotationMethod Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| defaultValue |
Expression
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
Constructor Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| className | String |
| body |
BlockStmt
N
|
| exceptions |
list of
ExceptionThrown
N
|
| parameters |
list of
ParameterDeclaration
N
|
| typeParameters |
list of
TypeParameter
N
|
Inherited Features
| Name | Type and Description |
|---|
Block Node

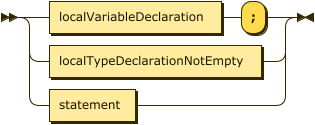

BlockStatement Node
A block is a sequence of statements, local variable declaration statements, and local class and interface declarations within braces.
Local Features
| Name | Type and Description |
|---|---|
| localTypeDeclarationNotEmpty |
LocalTypeDeclarationNotEmpty
N
|
| localVariableDeclaration |
LocalVariableDeclaration
N
|
| statement |
Statement
N
|

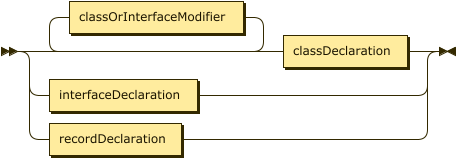

LocalTypeDeclarationNotEmpty Node
Local Features
| Name | Type and Description |
|---|---|
| classDeclaration |
ClassDeclaration
N
|
| classOrInterfaceModifier |
list of
ClassOrInterfaceModifier
N
|
| interfaceDeclaration |
InterfaceDeclaration
N
|
| recordDeclaration |
RecordDeclaration
N
|
ClassDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| extended |
Type
N
|
| implemented |
list of
Type
N
|
| permittedSubclasses |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| members |
list of
EntityMember
N
|
FieldDecl Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| declarators |
list of
VariableDeclarator
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|

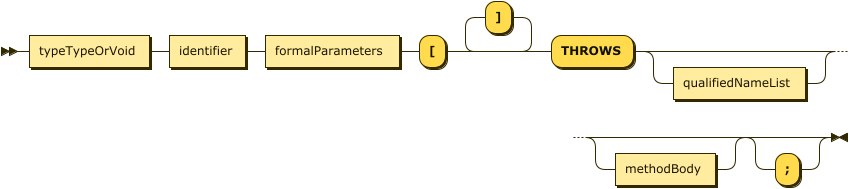

MethodDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
MethodBody
N
|
| exceptions |
list of
ExceptionThrown
N
|
| parameters |
list of
ParameterDeclaration
N
|
Inherited Features
| Name | Type and Description |
|---|
MethodBody Node
ExceptionThrown Node
QualifiedName Node
Local Features
| Name | Type and Description |
|---|---|
| name | String |
| jAnnotations |
list of
Annotation
N
|
| qualifier |
QualifiedName
N
|
ParameterDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| variadic | LionWeb.LionCore_builtins.Boolean |
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
TypeParameter Node
ExtendsClause Node

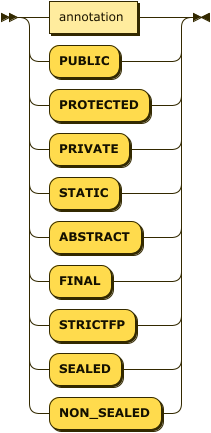

ClassOrInterfaceModifier Node

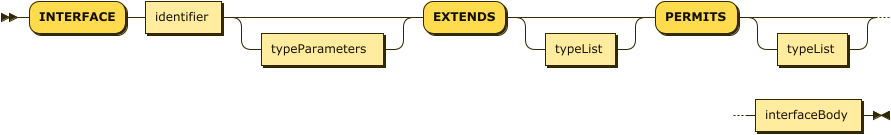

InterfaceDeclaration Node
Super Classes
Local Features
Inherited Features
| Name | Type and Description |
|---|---|
| members |
list of
EntityMember
N
|
RecordDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| components |
list of
RecordComponent
N
|
| implemented |
list of
Type
N
|
| typeParameters |
list of
TypeParameter
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| members |
list of
EntityMember
N
|

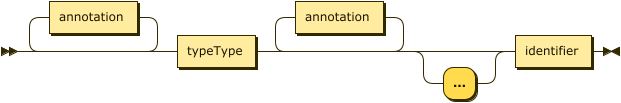

RecordComponent Node
Local Features
| Name | Type and Description |
|---|---|
| variadic | LionWeb.LionCore_builtins.Boolean |
| type |
Type
N
|
| variadicAnnotations |
list of
Annotation
N
|

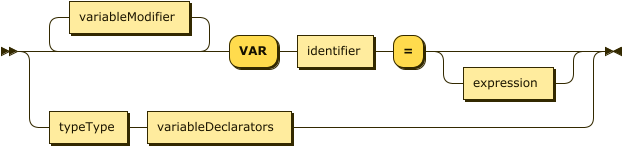

LocalVariableDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| declarators |
list of
VariableDeclarator
N
|
| type |
Type
N
|
| expression |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |

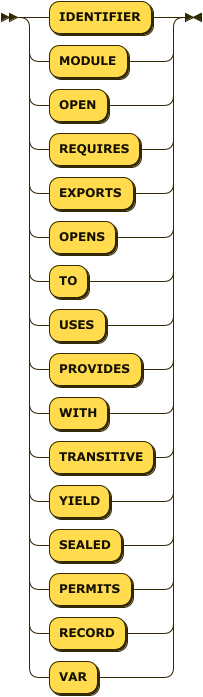

Identifier Node
ExpressionList Node

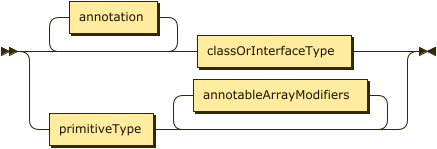

TypeType Node
Local Features
| Name | Type and Description |
|---|---|
| annotableArrayModifiers |
list of
AnnotableArrayModifiers
N
|
| annotation |
list of
Annotation
N
|
| classOrInterfaceType |
ClassOrInterfaceType
N
|
| primitiveType |
PrimitiveType
N
|
AnnotableArrayModifiers Node

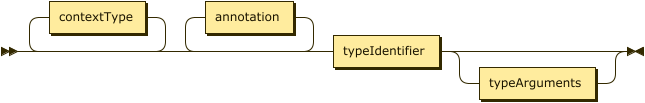

ClassOrInterfaceType Node
Local Features
| Name | Type and Description |
|---|---|
| annotation |
list of
Annotation
N
|
| contextType |
list of
ContextType
N
|
| typeArguments |
TypeArguments
N
|
| typeIdentifier |
TypeIdentifier
N
|
ContextType Node

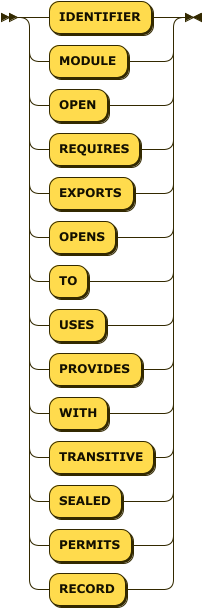

TypeIdentifier Node
PrimitiveType Node
VariableModifier Node
VariableDeclaratorId Node
Local Features
| Name | Type and Description |
|---|---|
| arrayModifiers |
list of
ArrayModifiersHolder
N
|
| identifier |
Identifier
N
|
ArrayModifiersHolder Node
Local Features
| Name | Type and Description |
|---|---|
| heldValue | String |
ForInit Node
Local Features
| Name | Type and Description |
|---|---|
| expressionList |
ExpressionList
N
|
| localVariableDeclaration |
LocalVariableDeclaration
N
|

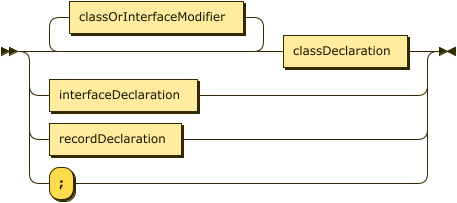

LocalTypeDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| localDeclaration |
TypeDeclaration
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |

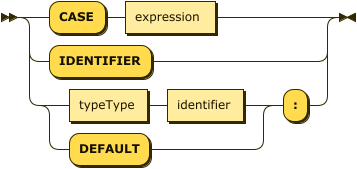

SwitchLabel Node
Local Features
| Name | Type and Description |
|---|---|
| enumConstantName | optional |
| constantExpression |
Expression
N
|
| typeType |
TypeType
N
|
| varName |
Identifier
N
|
InterfaceConstant Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| declarators |
list of
VariableDeclarator
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
StaticInitializer Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| block |
BlockStmt
N
|
Inherited Features
| Name | Type and Description |
|---|
NormalAnnotation Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| values |
list of
AnnotationValueAssignment
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| typeName |
AnnotationDeclaration
R
|
AnnotationValueAssignment Node
SingleElementAnnotation Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| typeName |
AnnotationDeclaration
R
|
ArrayLiteralExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| elements |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
AddAssignmentExpr Node
AndAssignmentExpr Node
AssignmentExpr Node
DivAssignmentExpr Node
ModAssignmentExpr Node
MulAssignmentExpr Node
OrAssignmentExpr Node
SignedLeftShiftAssignmentExpr Node
SignedRightShiftAssignmentExpr Node
SubAssignmentExpr Node
UnsignedRightShiftAssignmentExpr Node
XorAssignmentExpr Node
SubtractionExpr Node
SumExpr Node
BitwiseAndExpr Node
BitwiseOrExpr Node
BitwiseXorExpr Node
EqualToExpr Node
NotEqualToExpr Node
LogicalAndExpr Node
LogicalOrExpr Node
DivisionExpr Node
ModuleExpr Node
MultiplicationExpr Node
GreaterOrEqualToExpr Node
GreaterThanExpr Node
LessOrEqualToExpr Node
LessThanExpr Node
SignedLeftShiftExpr Node
SignedRightShiftExpr Node
UnsignedRightShiftExpr Node
ClassReference Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| className |
TypeLikeDeclaration
R
|
Inherited Features
| Name | Type and Description |
|---|
ConditionalExpr Node
The conditional operator ? : uses the boolean value of one expression to decide which of two other expressions should be evaluated.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| condition |
Expression
N
|
| falseBranch |
Expression
N
|
| trueBranch |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
ConstructorReferenceExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| type |
Type
N
|
| typeArguments |
TypeArguments
N
|
Inherited Features
| Name | Type and Description |
|---|
InstanceOfPatternExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| varDecl |
LocalVariableDeclaration
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| expression |
Expression
N
|
InstanceOfTypeExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| expression |
Expression
N
|
LambdaExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| expressionBlock |
BlockStmt
N
|
| expressionBody |
Expression
N
|
| params |
list of
LambdaParameter
N
|
Inherited Features
| Name | Type and Description |
|---|
AdvancedLambdaParameter Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| variableArity | LionWeb.LionCore_builtins.Boolean |
| dimensions |
list of
ArrayDimension
N
|
| modifiers |
list of
Modifier
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
SimpleLambdaParameter Node
MethodReferenceExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| methodName | String |
| context |
Expression
N
|
| typeArguments |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
MethodStaticReferenceExpr Node
Super Classes
Local Features
Inherited Features
| Name | Type and Description |
|---|
NegatedExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| base |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
PlaceholderExpr Node
Placeholder used to represent any expression. This is not part of the Java language. It is instead an extension used to represent patterns and templates of Java code.
Super Classes
Inherited Features
| Name | Type and Description |
|---|
ArrayAccess Node
An array access expression refers to a variable that is a component of an array.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| array |
Expression
N
|
| index |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
ArrayCreationExpressionWithInitializer Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| initializers |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| dimensions |
ArrayDimensions
N
|
| type |
Type
N
|
ArrayDimensions Node
ArrayCreationExpressionWithoutInitializer Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| dimensionExpressions |
ArrayDimensionExprs
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| dimensions |
ArrayDimensions
N
|
| type |
Type
N
|
ArrayDimensionExprs Node
ArrayDimensionExpr Node
ClassInstanceCreationExpr Node
A class instance creation expression is used to create new objects that are instances of classes. Qualified instance creation expressions are used to create instances of inner classes. The Primary part of the expression identifies the outer (enclosing) class. new is, again, the new keyword. Identifier is the simple name of the inner class being created. As an example, assume you have a class named Outer that has an inner class named Inner. The expression to create an instance of inner would look like: new Outer( ).new Inner( ); @param typeName name of the class or interface to instantiate (as one could define an anonymous class from an interface) @param qualifier a qualified class instance creation expression enables the creation of instances of inner member classes and their anonymous subclasses @param body it is present if we define an anonymous class See https://docs.oracle.com/javase/specs/jls/se19/html/jls-15.html#jls-15.9
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| typeName |
TypeDeclaration
R
|
| arguments |
list of
Expression
N
|
| body |
ClassInstanceCreationBody
N
|
| classTypeArguments |
ExplicitTypeArguments
N
|
| constructorTypeArguments |
TypeArguments
N
|
| qualifier |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
ClassInstanceCreationBody Node
ClassLiteralExpr Node
A class literal is an expression consisting of the name of a class, interface, array type, or primitive type, or the pseudo-type void, followed by a '.' and the token class.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
FieldAccessExpr Node
expression or the special keyword super. If an expression name is of the form Q.Id, then Q has already been classified as a package name, a type name, or an expression name. Note that also qualified types could be represented as JFieldAccessExpr, as we can distinguish them only after symbol resolution and not during parsing.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| field |
VariableDeclarator
R
|
| container |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
CharacterLiteralExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value | String |
Inherited Features
| Name | Type and Description |
|---|
FloatingPointLiteralExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value | String |
Inherited Features
| Name | Type and Description |
|---|
IntegerLiteralExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| format | IntegerFormat |
| value | String |
Inherited Features
| Name | Type and Description |
|---|
NullLiteralExpr Node
StringLiteralExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value | String |
Inherited Features
| Name | Type and Description |
|---|
TextBlockExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value | String |
Inherited Features
| Name | Type and Description |
|---|
ExpressionQualifiedMethodInvocationExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| container |
Expression
N
|
| typeArguments |
TypeArguments
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| method |
MethodDeclarationLike
R
|
| arguments |
list of
Expression
N
|
SuperQualifiedMethodInvocationExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| qualifiedName |
QualifiedName
N
|
| typeArguments |
TypeArguments
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| method |
MethodDeclarationLike
R
|
| arguments |
list of
Expression
N
|
TypeQualifiedMethodInvocationExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| typeArguments |
TypeArguments
N
|
| typeName |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| method |
MethodDeclarationLike
R
|
| arguments |
list of
Expression
N
|
UnqualifiedMethodInvocationExpr Node
Super Classes
Inherited Features
| Name | Type and Description |
|---|---|
| method |
MethodDeclarationLike
R
|
| arguments |
list of
Expression
N
|
Parenthesized Node
A parenthesized expression is a primary expression whose type is the type of the contained expression and whose value at run time is the value of the contained expression. If the contained expression denotes a variable then the parenthesized expression also denotes that variable. The use of parentheses affects only the order of evaluation, except for a corner case whereby (-2147483648) and (-9223372036854775808L) are legal but -(2147483648) and -(9223372036854775808L) are illegal. This is because the decimal literals 2147483648 and 9223372036854775808L are allowed only as an operand of the unary minus operator
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| base |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
QualifiedThisExpr Node
Any lexically enclosing instance can be referred to by explicitly qualifying the keyword this.
Let n be an integer such that TypeName denotes the n'th lexically enclosing class or interface declaration of the
class or interface whose declaration immediately encloses the qualified this expression.
The value of a qualified this expression TypeName.this is the n'th lexically enclosing instance of this.
If TypeName denotes a generic class, with type parameters F1,...,Fn, the type of the qualified this expression is
TypeName
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| typeName |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
SuperExpr Node
ThisExpr Node
The keyword this may be used as an expression in the following contexts: - in the body of an instance method of a class - in the body of a constructor of a class - in an instance initializer of a class - in the initializer of an instance variable of a class - in the body of an instance method of an interface, that is, a default method or a non-static private interface method. When used as an expression, the keyword this denotes a value that is a reference either to the object for which the instance method was invoked, or to the object being constructed. The value denoted by this in a lambda body is the same as the value denoted by this in the surrounding context.
Super Classes
Inherited Features
| Name | Type and Description |
|---|
ReferenceExpr Node
If an expression name consists of a single Identifier, then there must be exactly one declaration denoting either a local variable, formal parameter, exception parameter, or field in scope at the point at which the identifier occurs. Otherwise, a compile-time error occurs.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value |
LionWeb.LionCore_builtins.INamed
R
|
Inherited Features
| Name | Type and Description |
|---|
SuperConstructorCall Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| arguments |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
SuperMethodReferenceExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| methodName | String |
| type |
QualifiedName
N
|
| typeArguments |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|
SwitchExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| alternatives |
list of
SwitchExprAlternative
N
|
| value |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
CaseSwitchExprAlternative Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| condition |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| body |
list of
Statement
N
|
DefaultSwitchExprAlternative Node
ThisConstructorCall Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| arguments |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
CastExpr Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| base |
Expression
N
|
PostDecrementExpr Node
PostIncrementExpr Node
BitwiseComplementExpr Node
MinusExpr Node
PlusExpr Node
PreDecrementExpr Node
PreIncrementExpr Node
TrueLiteralExpr Node
FalseLiteralExpr Node
ExpressionFieldAccessContainer Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| container |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
SuperFieldAccessContainer Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| qualifiedName |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
OnDemandImportDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| imported |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| static | LionWeb.LionCore_builtins.Boolean |
SpecificImportDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| imported |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| static | LionWeb.LionCore_builtins.Boolean |
PackageDeclaration Node

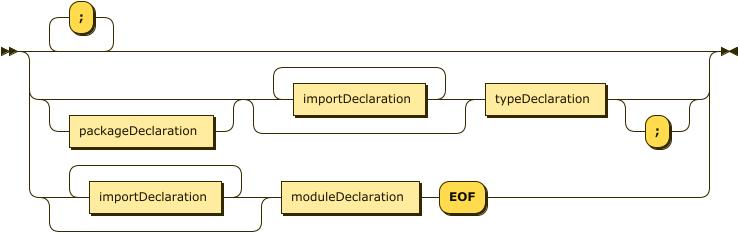

CompilationUnit Node
Local Features
| Name | Type and Description |
|---|---|
| declarations |
list of
TypeDeclaration
N
|
| imports |
list of
ImportDeclaration
N
|
| moduleDeclaration |
ModuleDeclaration
N
|
| packageDeclaration |
PackageDeclaration
N
|
ModuleDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| open | LionWeb.LionCore_builtins.Boolean |
| directives |
list of
ModuleDirective
N
|
| name |
QualifiedName
N
|
ExportsModuleDirective Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| packageName |
QualifiedName
N
|
| toModules |
list of
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
OpensModuleDirective Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| packageName |
QualifiedName
N
|
| toModules |
list of
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
ProvidesModuleDirective Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| providers |
list of
QualifiedName
N
|
| service |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
RequiresModuleDirective Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| modifiers |
list of
Modifier
N
|
| module |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|
UsesModuleDirective Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| type |
QualifiedName
N
|
Inherited Features
| Name | Type and Description |
|---|

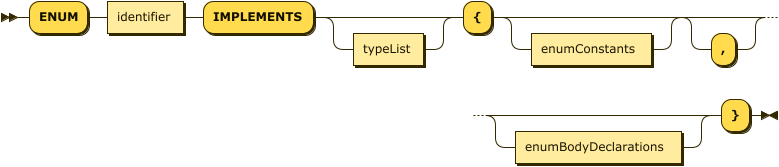

EnumDeclaration Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| constants |
list of
EnumConstant
N
|
| implemented |
list of
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| members |
list of
EntityMember
N
|

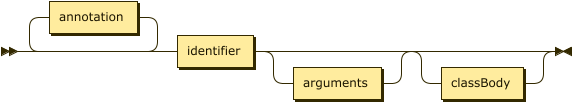

EnumConstant Node
Local Features
| Name | Type and Description |
|---|---|
| arguments |
list of
Expression
N
|
| members |
list of
EntityMember
N
|
TypeParameters Node
TypeParameterExtendsClause Node
EnumBodyDeclarations Node

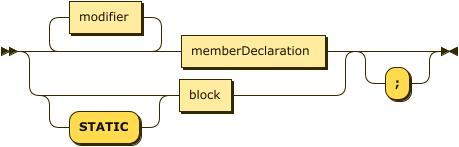

ClassBodyDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| block |
Block
N
|
| memberDeclaration |
MemberDeclaration
N
|
| modifier |
list of
Modifier
N
|

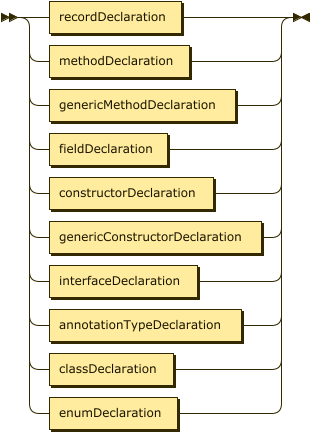

MemberDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| annotationTypeDeclaration |
AnnotationTypeDeclaration
N
|
| classDeclaration |
ClassDeclaration
N
|
| constructorDeclaration |
ConstructorDeclaration
N
|
| enumDeclaration |
EnumDeclaration
N
|
| fieldDeclaration |
FieldDeclaration
N
|
| genericConstructorDeclaration |
GenericConstructorDeclaration
N
|
| genericMethodDeclaration |
GenericMethodDeclaration
N
|
| interfaceDeclaration |
InterfaceDeclaration
N
|
| methodDeclaration |
MethodDeclaration
N
|
| recordDeclaration |
RecordDeclaration
N
|
AnnotationTypeDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| annotationTypeBody |
AnnotationTypeBody
N
|
| identifier |
Identifier
N
|
AnnotationTypeBody Node
Local Features
| Name | Type and Description |
|---|---|
| annotationTypeElementDeclaration |
list of
AnnotationTypeElementDeclaration
N
|

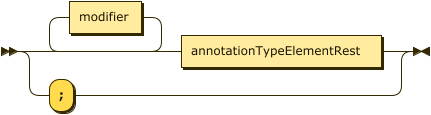

AnnotationTypeElementDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| annotationTypeElementRest |
AnnotationTypeElementRest
N
|
| modifier |
list of
Modifier
N
|

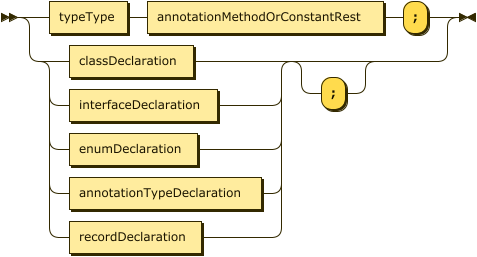

AnnotationTypeElementRest Node
Local Features
| Name | Type and Description |
|---|---|
| annotationMethodOrConstantRest |
AnnotationMethodOrConstantRest
N
|
| annotationTypeDeclaration |
AnnotationTypeDeclaration
N
|
| classDeclaration |
ClassDeclaration
N
|
| enumDeclaration |
EnumDeclaration
N
|
| interfaceDeclaration |
InterfaceDeclaration
N
|
| recordDeclaration |
RecordDeclaration
N
|
| typeType |
TypeType
N
|
AnnotationMethodOrConstantRest Node
Local Features
| Name | Type and Description |
|---|---|
| annotationConstantRest |
AnnotationConstantRest
N
|
| annotationMethodRest |
AnnotationMethodRest
N
|
AnnotationConstantRest Node
VariableDeclarators Node
AnnotationMethodRest Node
DefaultValue Node
ElementValue Node
Local Features
| Name | Type and Description |
|---|---|
| annotation |
Annotation
N
|
| elementValueArrayInitializer |
ElementValueArrayInitializer
N
|
| expression |
Expression
N
|

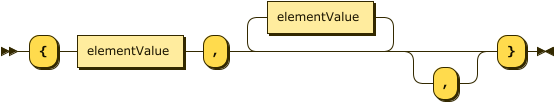

ElementValueArrayInitializer Node
ConstructorDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| constructorBody |
Block
N
|
| formalParameters |
FormalParameters
N
|
| identifier |
Identifier
N
|
| qualifiedNameList |
QualifiedNameList
N
|
FormalParameters Node
Local Features
| Name | Type and Description |
|---|---|
| formalParameterList |
FormalParameterList
N
|
| receiverParameter |
ReceiverParameter
N
|
FormalParameterList Node
Local Features
| Name | Type and Description |
|---|---|
| formalParameter |
list of
FormalParameter
N
|
| lastFormalParameter |
LastFormalParameter
N
|
FormalParameter Node
Local Features
| Name | Type and Description |
|---|---|
| typeType |
TypeType
N
|
| variableDeclaratorId |
VariableDeclaratorId
N
|
| variableModifier |
list of
VariableModifier
N
|
LastFormalParameter Node
Local Features
| Name | Type and Description |
|---|---|
| annotation |
list of
Annotation
N
|
| typeType |
TypeType
N
|
| variableDeclaratorId |
VariableDeclaratorId
N
|
| variableModifier |
list of
VariableModifier
N
|
ReceiverParameter Node
QualifiedNameList Node
FieldDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| typeType |
TypeType
N
|
| variableDeclarators |
VariableDeclarators
N
|
GenericConstructorDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| constructorDeclaration |
ConstructorDeclaration
N
|
| typeParameters |
TypeParameters
N
|
GenericMethodDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| methodDeclaration |
MethodDeclaration
N
|
| typeParameters |
TypeParameters
N
|
InterfaceBody Node
Local Features
| Name | Type and Description |
|---|---|
| interfaceBodyDeclaration |
list of
InterfaceBodyDeclaration
N
|
InterfaceBodyDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| interfaceMemberDeclaration |
InterfaceMemberDeclaration
N
|
| modifier |
list of
Modifier
N
|

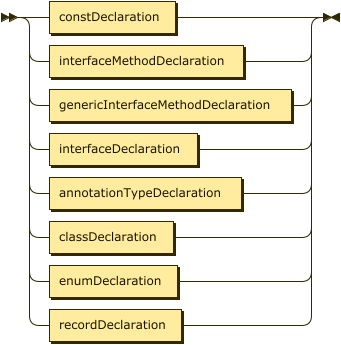

InterfaceMemberDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| annotationTypeDeclaration |
AnnotationTypeDeclaration
N
|
| classDeclaration |
ClassDeclaration
N
|
| constDeclaration |
ConstDeclaration
N
|
| enumDeclaration |
EnumDeclaration
N
|
| genericInterfaceMethodDeclaration |
GenericInterfaceMethodDeclaration
N
|
| interfaceDeclaration |
InterfaceDeclaration
N
|
| interfaceMethodDeclaration |
InterfaceMethodDeclaration
N
|
| recordDeclaration |
RecordDeclaration
N
|
ConstDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| constantDeclarator |
list of
ConstantDeclarator
N
|
| typeType |
TypeType
N
|
ConstantDeclarator Node
Local Features
| Name | Type and Description |
|---|---|
| arrayModifiers |
list of
ArrayModifiersHolder
N
|
| identifier |
Identifier
N
|
| variableInitializer |
VariableInitializer
N
|
VariableInitializer Node
Local Features
| Name | Type and Description |
|---|---|
| arrayInitializer |
ArrayInitializer
N
|
| expression |
Expression
N
|

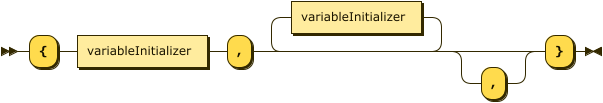

ArrayInitializer Node
GenericInterfaceMethodDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| interfaceCommonBodyDeclaration |
InterfaceCommonBodyDeclaration
N
|
| interfaceMethodModifier |
list of
InterfaceMethodModifier
N
|
| typeParameters |
TypeParameters
N
|

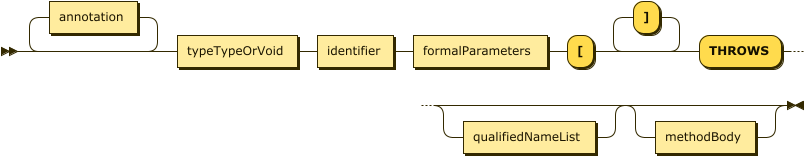

InterfaceCommonBodyDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| annotation |
list of
Annotation
N
|
| formalParameters |
FormalParameters
N
|
| identifier |
Identifier
N
|
| methodBody |
MethodBody
N
|
| qualifiedNameList |
QualifiedNameList
N
|
| typeTypeOrVoid |
TypeTypeOrVoid
N
|
TypeTypeOrVoid Node
InterfaceMethodModifier Node
InterfaceMethodDeclaration Node
Local Features
| Name | Type and Description |
|---|---|
| interfaceCommonBodyDeclaration |
InterfaceCommonBodyDeclaration
N
|
| interfaceMethodModifier |
list of
InterfaceMethodModifier
N
|
FloatLiteral Node
IntegerLiteral Node
AssertStmt Node
An assertion is an assert statement containing a boolean expression. An assertion is either enabled or disabled. If an assertion is enabled, execution of the assertion causes evaluation of the boolean expression and an error is reported if the expression evaluates to false. If the assertion is disabled, execution of the assertion has no effect whatsoever.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| test |
Expression
N
|
| voidTest |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
BlockStmt Node
A block is a sequence of statements, local variable declaration statements, and local class and interface declarations within braces.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| statements |
list of
Statement
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
BreakStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| identifier | optional |
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
ContinueStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| identifier | optional |
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
DoStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
Statement
N
|
| condition |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
EmptyStatement Node
An empty statement does nothing.
Super Classes
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
ExpressionStmt Node
An expression statement is executed by evaluating the expression; if the expression has a value, the value is discarded. Execution of the expression statement completes normally if and only if evaluation of the expression completes normally.
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| expression |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
ForEachStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
Statement
N
|
| collection |
Expression
N
|
| type |
Type
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
ForStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
Statement
N
|
| check |
Expression
N
|
| initializers |
list of
Statement
N
|
| postOp |
list of
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
IfStatement Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| condition |
Expression
N
|
| elseBody |
Statement
N
|
| thenBody |
Statement
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
PlaceholderMultiStmt Node
PlaceholderSingleStmt Node
ReturnStatement Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
SwitchStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| alternatives |
list of
SwitchStmtAlternative
N
|
| value |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
SwitchStmtAlternative Node
DefaultSwitchStmtLabel Node
ExpressionSwitchStmtLabel Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| condition |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|
VarDeclSwitchStmtLabel Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| variable |
LocalVariableDeclaration
N
|
Inherited Features
| Name | Type and Description |
|---|
SynchronizedStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
BlockStmt
N
|
| condition |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
ThrowStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| expression |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
CatchClause Node
CatchClauseParameter Node
FinallyBlock Node
TryCatchStmt Node
Super Classes
Inherited Features
| Name | Type and Description |
|---|---|
| body |
BlockStmt
N
|
| catchClauses |
list of
CatchClause
N
|
| finallyBlock |
FinallyBlock
N
|
TryWithResourceStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| resources |
list of
ResourceSpecification
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| body |
BlockStmt
N
|
| catchClauses |
list of
CatchClause
N
|
| finallyBlock |
FinallyBlock
N
|
ResourceSpecification Node
WhileStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| body |
Statement
N
|
| condition |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
YieldStmt Node
Super Classes
Local Features
| Name | Type and Description |
|---|---|
| value |
Expression
N
|
Inherited Features
| Name | Type and Description |
|---|---|
| label | optional |
